Poly-Texx H.O.T. is the newest development in the line of abrasion resistant plastic materials. It is a self-lubricating Bearing Grade UHMW with a High Operating Temperature (H.O.T.). It meets requirements of FDA regulation 21CFR 177.1520, item 2.1 and 2.2, for articles intended for direct food contact usage and regulation 21CFR 178.2010 governing additives and food contact usage. Typical applications include bushings, chain guides, wiping blades and slide plates for the food and industrial applications. Its main attribute is a short term operating temperature of 275 F. The combination of excellent bearing properties, self-lubrication and high operating temperature, makes Poly-Texx H.O.T. a great choice for many demanding applications.

Specification Test Value Units
Density, 73°F D792 .93 gm/cm3
Tensile Strength @ Yield, 73°F D638 3584 psi
Tensile Modulus of Elasticity, 73°F D638 120,000 psi
Tensile Elongation (at break), 73°F D638 242 %
Flexural Strength, 73°F D790 - psi
Flexural Modulus of Elasticity D790 110,000 psi
Shear Strength, 73°F D732 - psi
Compressive Strength – Ultimate - 750 psi
Compressive Strength at 2% Deformation D695 - psi
Compressive Strength at 10% Deformation D695 1,000 psi
Deformation Under Load - - %
Compressive Modulus of Elasticity, 73°F D695 - -
Compressive Strength ⊥ to Laminate (Modulus) - 750 psi
Compressive Strength ⊥ to Laminate (Yield) - 750 psi
Compressive Strength ⊥ to Laminate (Ultimate) - 750 psi
Hardness, Durometer (Shore “D” scale) D2240 58 -
Hardness, Rockwell (Scale as noted) D785 - Rockwell M
Izod Impact, Notched @ 73°F D256 Type A No Break ft.lbs/in. of notch
Coefficient of Friction (Dry vs Steel) Static PTM55007 .15-.20 -
Coefficient of Friction (Dry vs Steel) Dynamic PTM55007 .10-.14 -
Maximum Static Bearing Load (P) PTM55007 750 psi
Maximum Unlubricated No Load Bearing Velocity (V) PTM55007 15 ft/minute
Maximum Limiting PV (Unlubricated) PTM55007 750 psi x ft/min.
Wear Factor “K” x 10-10 PTM55010 - Cubic in.-min/ft.lbs.hr
Sand Wheel Wear/Abrasion Test - 100 UHMW=100
Minimum Mating Surface Hardness - 20 Rockwell (Brinnell)
Coefficient of Linear Thermal Expansion E-831(TMA) 11 in/in/°F x 10-5
Coefficient of Thermal Expansion // to Laminates E-831(TMA) 11 in/in/°F x 10-5
Coefficient of Thermal Expansion I to Laminates E-831(TMA) 11 in/in/°F x 10-5
Softening Point - 180 °F
Heat Deflection Temperature 264 psi D648 116 °F
Embrittlement Temperature - - °F Min.
Continuous Service Temperature in Air - 275 °F Max.
Short Term Service Temperature - 275 °F Max.
Tg-Glass Transition (Amorphous) D3418 - °F
Melting Point (Crystalline) Peak D3418 - °F
Thermal Conductivity F433 2.84 BTU-in/(hr/ft2°F)
Dielectric Strength Short Term D149 - Volts/mil
Volume Resistivity D257 >1015 ohm/cm
Surface Resistivity D257 >1015 ohm/cm
Dielectric Constant, 10^6 Hz D150 2.3 -
Dissipation Factor, 10^6 Hz D150 .005 -
Flammability @ 3.1mm(1/8 in.) UL94 UL94 HB -
Arc Resistance - - seconds
Water Absorption, Immersion 24 Hours D570 (2) Nil %
Water Absorption, Immersion Saturation D570 (2) Nil %
Machinability Rating - 3 1=easy, 10=difficult

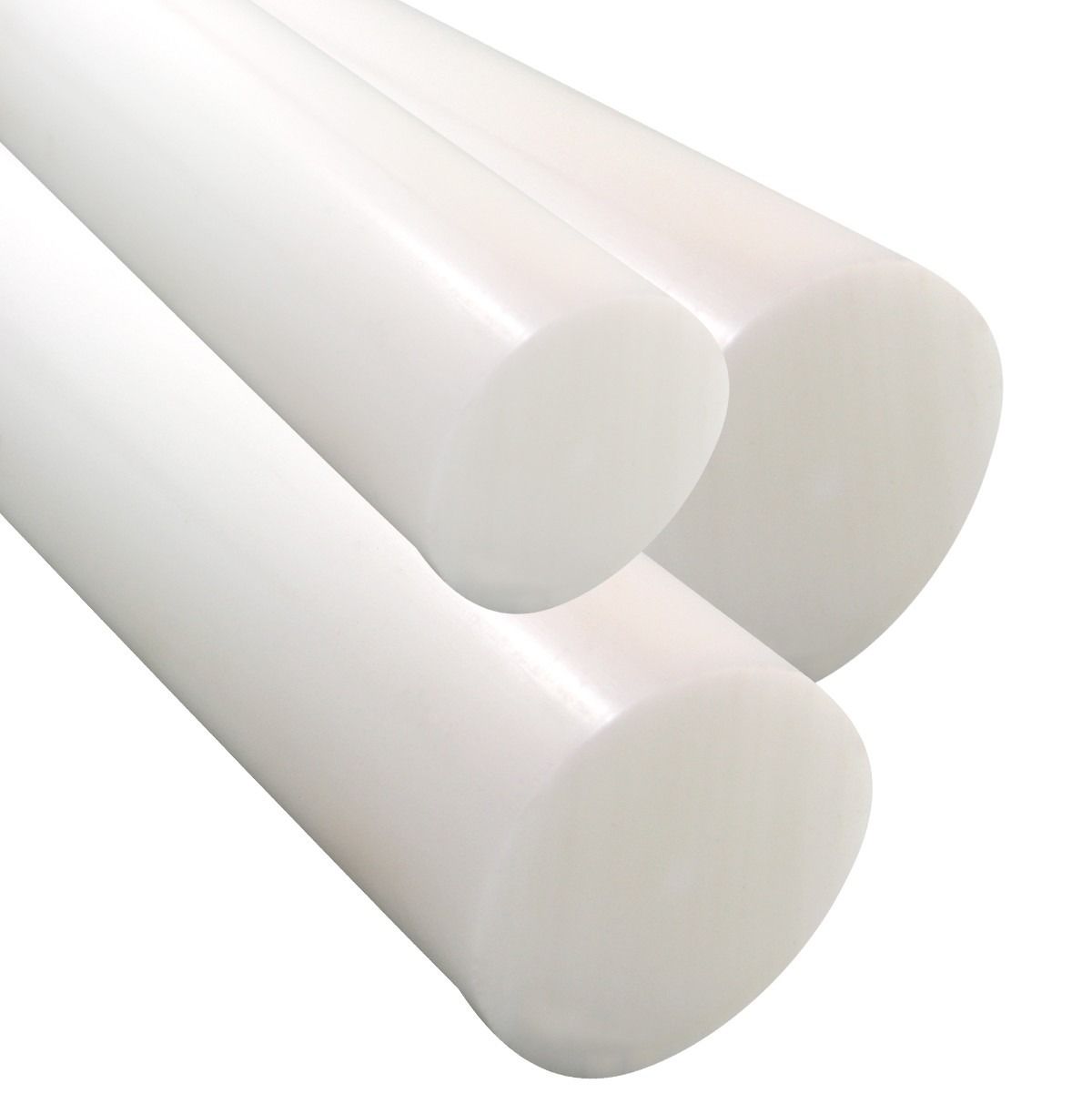

Rod Diameter Availability (Off the Shelf) .50 10 inches
Sheet Thickness Availability (Off the Shelf) .125 3.5 inches
