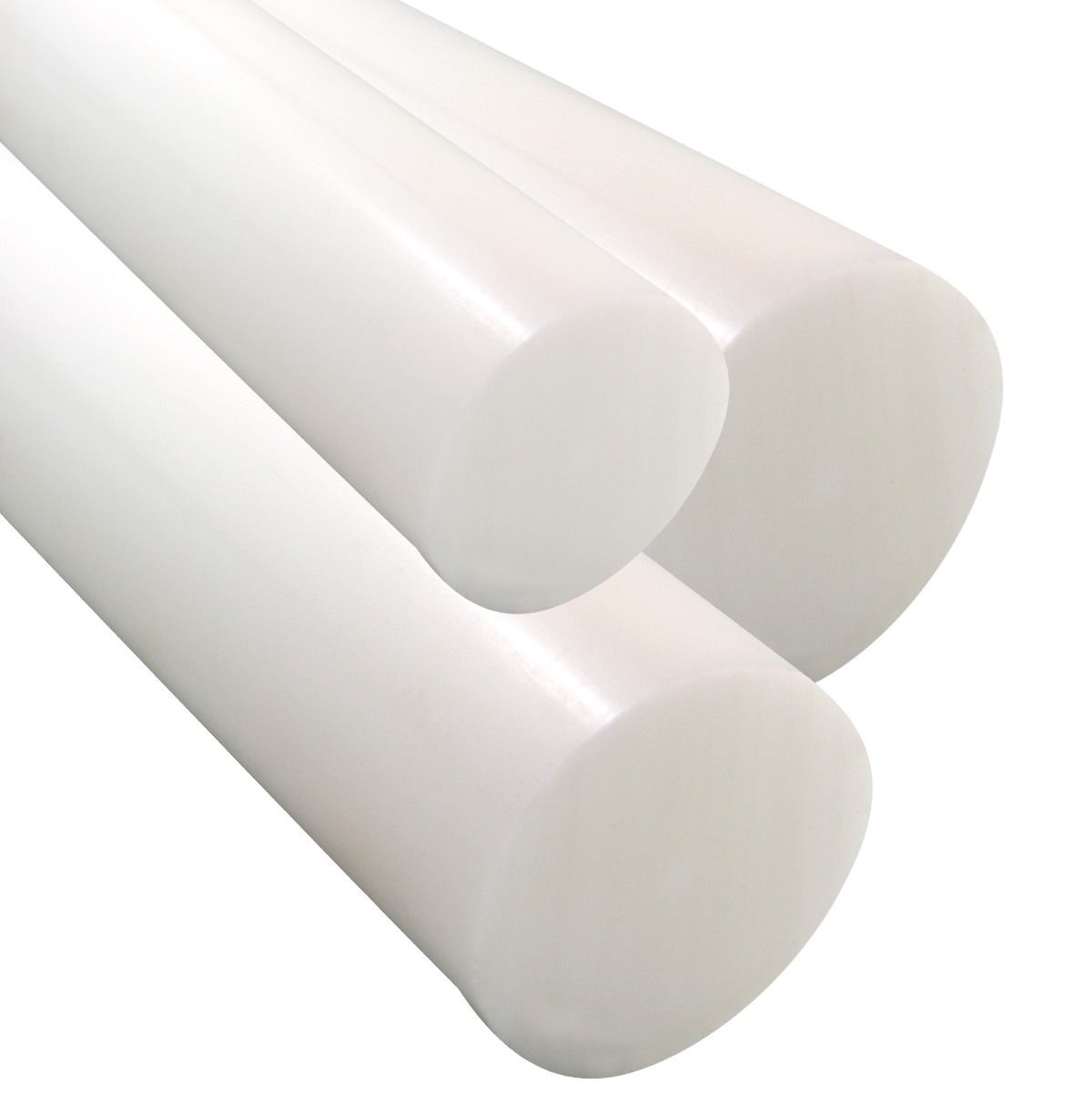

Poly-Texx® 350 is an abrasive resistant polymer that is FDA compliant in its unfilled state. It’s natural color is white, but is available in black and other colors at special request. Typical applications include sleeve and flanged bearings for industrial and manufacturing bearing applications. Custom and standard profiles for conveying environments. Custom machined components for high wear material handling applications. Its main attributes are impact and abrasion resistance. Its self-lubrication properties and low cost makes Poly-Texx® 350 a great choice for many demanding applications.

Specification Test Value Units
Density D792 .930 gm/cm3
Tensile Strength @ Yield, 73°F D638 3,100 psi
Tensile Modulus of Elasticity  5,800 psi
Tensile Elongation (at break), 73°F D638  200 %
Flexural Strength, 73°F D790 psi
Flexural Modulus of Elasticity D790 psi
Shear Strength, 73°F D732 psi
Compressive Strength - Ultimate 1,000 psi
Compressive Strength at 2% Deformation D695 1,100 psi
Compressive Strength at 10% Deformation D695 1,200 psi
Deformation Under Load 10 %
Compressive Modulus of Elasticity, 73°F D695
Compressive Strength ⊥ to Laminate (Modulus) psi
Compressive Strength ⊥ to Laminate (Yield) 1,000 psi
Compressive Strength ⊥ to Laminate (Ultimate) 1,000 psi
Hardness, Durometer (Shore "D" scale) D2240  D62-D66
Hardness, Rockwell (Scale as noted) D785 Rockwell M
Izod Impact, Notched @ 73°F D256 Type A 125 KJ/m2
Coefficient of Friction (Dry vs Steel) Static PTM 55007 0.15-0.20
Coefficient of Friction (Dry vs Steel) Dynamic PTM 55007 0.10-0.20
Maximum Static Bearing Load (P) PTM 55007 1,000 psi
Maximum Unlubricated No Load Bearing Velocity (V) PTM 55007 50 ft/minute
Maximum Limiting PV (Unlubricated) PTM 55007 2,000 psi x ft/min.
Wear Factor "K" x 10-10 PTM 55010 Cubic in.-min/ft.lbs.hr
Sand Wheel Wear/Abrasion Test 100 UHMW=100
Minimum Mating Surface Hardness 20 Rockwell (Brinnell)
Coefficient of Linear Thermal Expansion E-831 (TMA) 9.1 in/in/°F x 10-5
Coefficient of Thermal Expansion // to Laminates E-831 (TMA) 9.1 in/in/°F x 10-5
Coefficient of Thermal Expansion I to Laminates E-831 (TMA) 9.1 in/in/°F x 10-5
Softening Point  180 °F
Heat Deflection Temperature 264 psi D648 °F
Embrittlement Temperature Cryogenic °F Min.
Continuous Service Temperature in Air 180 °F Max.
Short Term Service Temperature 212 °F Max.
Tg-Glass Transition (Amorphous) D3418 °F
Melting Point (Crystalline) Peak D3418  380 °F
Thermal Conductivity F433 BTU-in/(hr/ft2°F)
Dielectric Strength Short Term D149 900 KV/mil
Volume Resistivity D257  >1015 ohm/cm
Surface Resistivity D257   >1015 ohm/cm
Dielectric Constant, (103 Hz) D150  2.3
Dissipation Factor, 106 Hz D150  <.5 x 10-3
Flammability @ 3.1mm(1/8 in.) UL94 UL94  V-2
Arc Resistance seconds
Water Absorption, Immersion 24 Hours D570 (2) Nil %
Water Absorption, Immersion Saturation D570 (2) Nil %
Machinability Rating 5 1=easy, 10=difficult
Rod Diameter Availability (Off the Shelf) .50 6.0 inches
Sheet Thickness Availability (Off the Shelf) .030 6.0 inches
