30% Glass Filled Nylon 6/6 is an extruded grade of the Nylon solid polymer shapes family. Unlike Nylon 6 (Cast grade), it provides the opportunity to be extruded into not only standard shapes such as rod, tubing, and sheet. Usually black in color custom shapes such as hexagonal, square and profiles are available as custom runs. Extruding shapes in this manner provides for the ability to machine with conventional lathe and screw machines. Close tolerances are easy to achieve. It has been commercially available since 1948; developed by DuPont. 30% Glass Filled Nylon 6/6 is well known for excellent toughness and electrical insulating properties. It also has good abrasion resistance making it ideal for fittings, pins, bushings and structural components. With a low Coefficient of Thermal Expansion (CoTE), 30% Glass Filled Nylon 6/6 combined with improved wear resistance makes it an excellent choice for many electrical insulating, bearing and wear components.

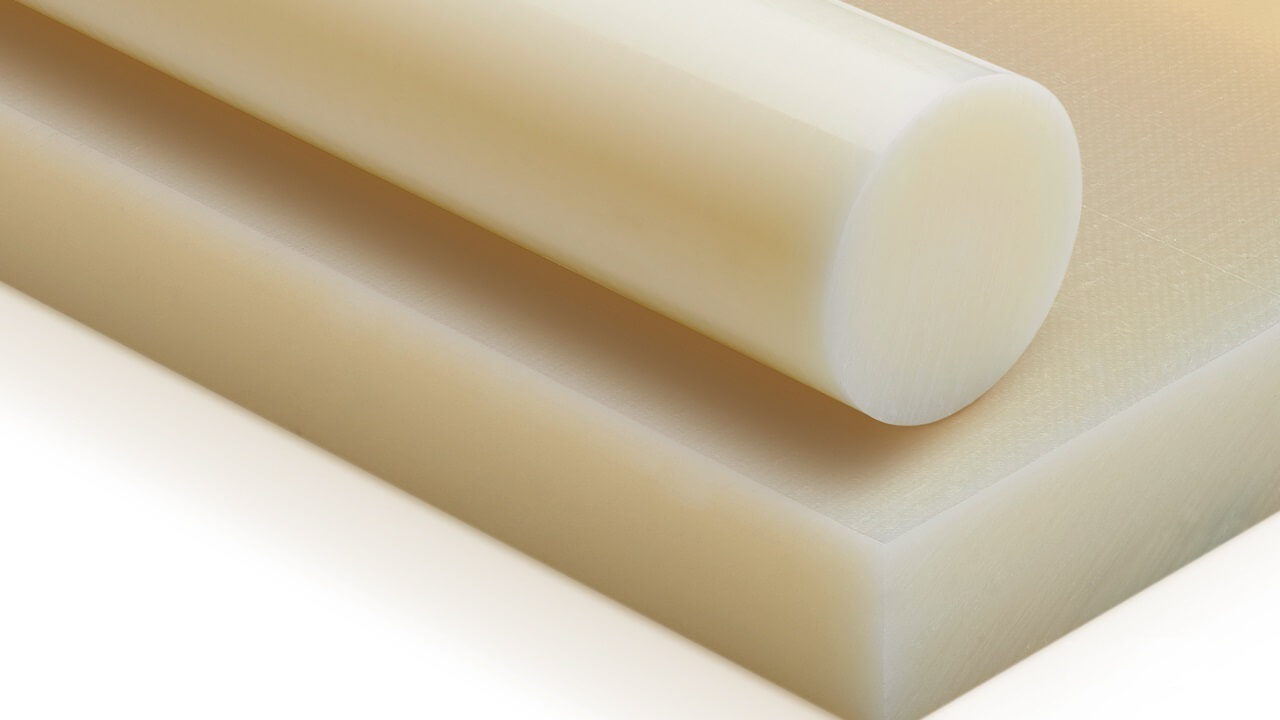

30% Glass Filled Nylon 6/6 is easily machined into precision parts using standard metalworking equipment. Tolerances of +/-.002 are easily achieved with experience. However faster tool wear is experienced due to the glass content. It is available in a broad variety of shapes and sizes. Rod and sheet stock normally comes slightly over sized for machining purposes. Both extruded and cast grades of nylon are available with different fillers and solid lubricants to accommodate specific application demands.

Several manufacturers offer varying grades and filled versions thereof by the names of Tecamid® and Nylatron®. Solid lubricants such as mineral oil, graphite, PTFE Teflon®, and MoS2 provide lower friction, while reinforcing agents such as carbon fiber, Kevlar®, and glass fibers provide higher levels of strength and dimensional stability.

Specification Test Value Units
Specific Gravity, 73°F D792 1.35 -
Tensile Strength @ Yield, 73°F D638   psi
Tensile Modulus of Elasticity, 73°F D638 1,160,000 psi
Tensile Elongation (at break), 73°F D638 23,000 %
Flexural Strength, 73°F D790 39,000 psi
Flexural Modulus of Elasticity D790 1,350,000 psi
Shear Strength, 73°F D732 10,000 psi
Compressive Strength - Ultimate   500 psi
Compressive Strength at 2% Deformation D695 700 psi
Compressive Strength at 10% Deformation D695 800 psi
Deformation Under Load     %
Compressive Modulus of Elasticity, 73°F D695
Compressive Strength ⊥ to Laminate (Modulus)     psi
Compressive Strength ⊥ to Laminate (Yield)     psi
Compressive Strength ⊥ to Laminate (Ultimate)     psi
Hardness, Durometer (Shore "D" scale) D2240 D90
Hardness, Rockwell (Scale as noted) D790  101 Rockwell M
Izod Impact, Notched @ 73°F D256 Type A 2.1 ft.lbs/in. of notch
Coefficient of Friction (Dry vs Steel) Static PTM55007 0.35
Coefficient of Friction (Dry vs Steel) Dynamic PTM55007 0.31
Maximum Static Bearing Load (P) PTM55007 500 psi
Maximum Unlubricated No Load Bearing Velocity (V) PTM55007 40 ft/minute
Maximum Limiting PV (Unlubricated) PTM55007 2,700 psi x ft/min.
Wear Factor "K" x 10-10 PTM55010 75 Cubic in.-min/ft.lbs.hr
Sand Wheel Wear/Abrasion Test   75 UHMW=100
Minimum Mating Surface Hardness   20 Rockwell (Brinnell)
Coefficient of Linear Thermal Expansion E-831(TMA) 3.10 in/in/°F x 10-5
Coefficient of Thermal Expansion // to Laminates E-831(TMA) 3.10 in/in/°F x 10-5
Coefficient of Thermal Expansion I to Laminates E-831(TMA) 3.10 in/in/°F x 10-5
Softening Point   200 °F
Heat Deflection Temperature 264 psi D648 482 °F
Embrittlement Temperature     °F Min.
Continuous Service Temperature in Air   230 °F Max.
Short Term Service Temperature   338 °F Max.
Tg-Glass Transition (Amorphous) D3418 161 °F
Melting Point (Crystalline) Peak D3418 500 °F
Thermal Conductivity C177 1.87 BTU-in/(hr/ft2°F)
Dielectric Strength Short Term D149 530 Volts/mil
Surface Resistivity D257 >1013 ohm/cm
Volume Resistivity D257 >1015 ohm/cm
Dielectric Constant, 106 Hz D150 3.6
Dissipation Factor, 106 Hz D150 0.02
Flammability @ 3.1mm(1/8 in.) UL94 UL94 HB
Arc Resistance     seconds
Water Absorption, Immersion 24 Hours D570 (2) 0.7 %
Water Absorption, Immersion Saturation D570 (2) 5.4 %
Machinability Rating   4 1=easy, 10=difficult
Rod Diameter Availability (Off the Shelf)  .25 6.0 inches
Sheet Thickness Availability (Off the Shelf)  .125 3.0 inches
